Steel structure

Description:

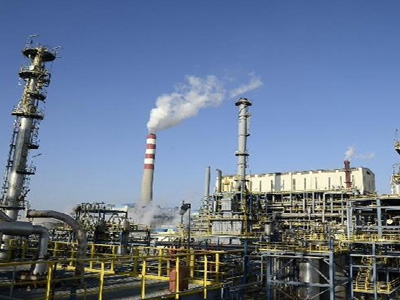

Steel structure for Petrochemical Fields

Item：040

The project including Detail Engineer Plan, Fabrication, and Installation , Steel Structure including Equipment Platform ,Pipe Bridge ,Tank Structure , Steel Platform .

1) Equipment Framework

Equipment Framework bear the Equipment ,Framework Structure mainly welding H Steel

2) Pipe Bridge
Pibe Bridge mainly support the pipe ,truss structure ,the Angle Steel and H section steel connected by welding or bolt ,the structure divide upper booms ,bottom booms , web member ects ,

3) Steel Platform
Steel Platform is convenient for several equipment operation ,Maintenance and repair .
